The RK monitor mounting is a high-strength, flexible bracket
Monitor mounting
Monitor mounting is a simple solution that when designed well, can improve the functioning of your staff offering many degrees of freedom that can be universally applied.
Our monitor mounts are a high-strength and flexibly mountable solution for the fixing and ergonomic adjustment of monitors and touch panels in industrial settings.
A monitor mounting solution is ideal for a range of applications including:
● General industrial applications
● Plants and machines
● Control centres
● Ergonomic workbenches
With years of industry expertise and experience in the component sector, supplying ergonomic solutions and industrial enclosures, RK Rose+Krieger have a comprehensive product range that is continuously adapted and innovated to suit the ever-changing needs of the market. Our existing monitor mounts come with a range of impressive features, making them the solution of choice for so many.
Advantages of the RK monitor mounting at a glance:
● Choice of user-specific or VESA-standard monitor connection
● High-strength materials ensure a long-term load-bearing capacity of up to 25 kg (static), for reliable processes, in the case of ball joint version up to 10 kg (static)
● Highly ergonomic thanks to personalised height adjustment
● Optimum adjustment of the field of vision thanks to side-turning
● Vibration-proof locking in 15° increments or 60° pivoting range (in the case of ball joint version)
● Pivoting option enables portrait or landscape monitor format
● Connects to aluminium profile and thus also to the machine frame using slot stones
● Universal mounting holes facilitate simple wall mounting
RK monitor mountings stand up to the tough demands of day-to-day industrial use
Monitor mountings for industrial applications
The vibration-proof and lockable version with tilt adjustment in 15° increments is suitable for monitors, control panels and touch panels up to 25 kg (static) and offers a wide range of adjustment options: for example, it allows the screen to be turned, tilted and swivelled and – if fixed to a round or square tube system – height-adjusted without tools. The new version of the RK monitor mounting with a ball joint offers even greater flexibility for the adjustment of industrial monitors. The joint enables a pivoting range of 60° with a load of up to max. 10 kg (static). A special coating on the ball joint and a clamping mechanism that is registered as a utility model guarantee the static friction required for reliable processes when the clamping lever is tightened.
The monitor mounting is available in a wide range of different versions
Monitor mounting with universal or VESA mount
With different fitting dimensions for end devices and a choice of mounting options, the RK monitor mounting offers maximum flexibility: users can choose between a cross-shaped connecting plate as per VESA Standard 75/100 – i.e. with a 75 x 75 mm or 100 x 100 mm mounting hole pattern – or a round aluminium universal mounting surface. The monitor mounting is compatible with RK connecting technology and the BLOCAN® aluminium profile system, although it can also be mounted on any other tube or profile or directly wall-mounted. The screws and slot stones required for fixing to an RK profile system are included in the scope of delivery.
Our monitor mounting is available in a range of varieties including the rotary flange monitor mounting, ball joint monitor mounting and the NEW monitor mounting compact.
Don’t forget that as well as a large range of mourning monitor variations and products, we also offer accessories for added functionality.
Types of monitor mountings
Rotary flange monitor mounting
Ball joint monitor mounting

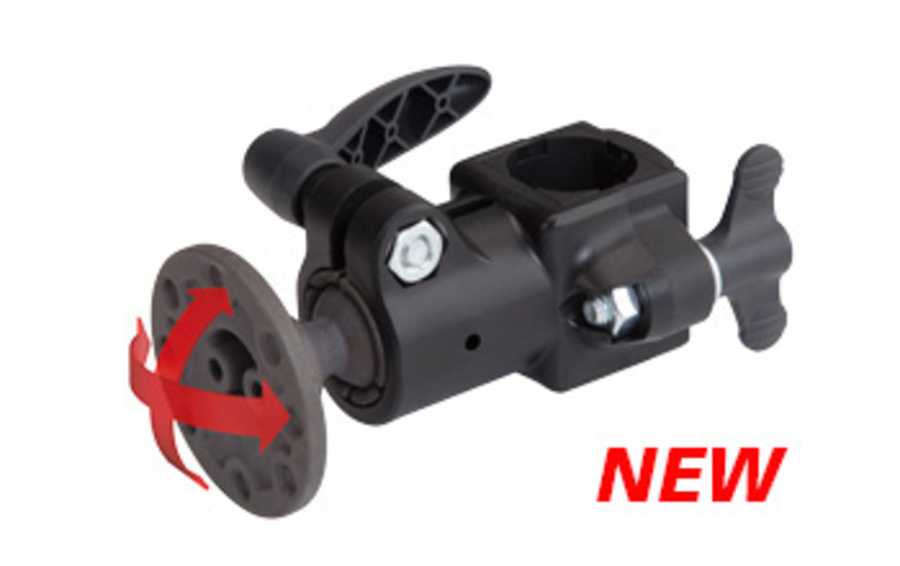

NEW: Monitor mounting compact
- Choice of user-specific or VESA-standard monitor connection
- High-strength materials ensure a long-term load-bearing capacity of up to 25 kg (static), for reliable processes, in the case of ball joint version up to 10 kg (static)
- Highly ergonomic thanks to personalised height adjustment
- Optimum adjustment of the field of vision thanks to side-turning
- Vibration-proof locking in 15° increments or 60° pivoting range (in the case of ball joint version)
- Pivoting option enables portrait or landscape monitor format
- Connects to aluminium profile and thus also to the machine frame using slot stones
- Universal mounting holes facilitate simple wall mounting
Monitor mounting accessories
Support arm
The support arm extends the range of action of the monitor mounting up to 720mm. With its 25kg load capacity, it’s powerful and able to withstand the weight of bulkier equipment. It’s also height-adjustable, with telescope versions available for delivery. Read More >
Monitor floor stand
The monitor floor stand is our ergonomic standing workstation with a manual height adjustment of 400mm and a spring-loaded locking bolt for secure locking. It can be adapted to all our monitor mounting variations. Read More >
Tablet holder
The tablet holder device includes a fixing set for RK monitor mounting, making it easy and seamless to work from your tablet or a handheld device of your choice.
Smartphone holder
The smartphone holder is an equally valuable tool in our monitor mounting accessory offering, that includes a 30mm round tube and fastening to RK Rose+Krieger profile system (40mm groove geometry).
